The Kubota SVL75 is a vertical-lift compact track loader. The current SVL75-3 weighs 9,190 lb with an open cab, is rated to carry 2,490 lb at 35 percent of its 7,112 lb tipping load, and reaches 122.7 in at the hinge pin. It replaced the SVL75-2 in 2023, and this page covers both.
- At a glance
- SVL75-3 specs
- SVL75-3 vs. SVL75-2
- Lift capacity
- Standard vs. optional
- SVL75-3 vs. 259D3
- FAQ
Kubota · Compact track loader
SVL75-3
| Operating weight9,190 lb | Rated operating capacity2,490 lb | Tipping load7,112 lb | Gross power71.6 hp |
Source: Kubota, SVL75-3 brochure, Cat. No. 8985D-01-US (2025). Open cab.
Kubota SVL75 at a glance
SVL75-3 replaced the SVL75-2 in 2023
Kubota announced the SVL75-3 on March 14, 2023, with dealer availability from May 2023. It added a one-piece sealed cab, a 7 in color touch panel with jog dial, a standard rear-view camera, an Advanced Multifunction Valve, Advanced Auto Downshift and three track response settings.
Vertical lift to 122.7 in
The SVL75-3’s hinge pin reaches 122.7 in, up from 119.1 in on the SVL75-2, with 39.6 in of reach at maximum lift and dump.
Kubota V3307 engine
A 3.3 L, 4-cylinder turbocharged Kubota diesel. The 2025 brochure lists 71.6 hp gross and 70.5 hp net at 2,400 rpm; Kubota’s 2023 launch release gave 74.3 hp, so check the figure for the year of the machine you are looking at.
High flow option to 29.8 gpm
Standard auxiliary flow is 19.2 gpm; the factory high-flow option raises it to 29.8 gpm at 3,185 psi, with 1/2 in and 3/4 in couplers and a 14-pin connector.
Kubota SVL75-3 specifications
US and metric figures are both as Kubota prints them in its 2025 US brochure. Operating weights include a 165 lb operator.
Weight and loader performance
| Spec | US | Metric |
|---|---|---|
| Operating weight, open / closed cab | 9,190 / 9,420 lb | 4,169 / 4,273 kg |
| Rated operating capacity, 35% of tipping load | 2,490 lb | 1,129 kg |
| Rated operating capacity, 50% of tipping load | 3,557 lb | 1,613 kg |
| Tipping load | 7,112 lb | 3,226 kg |
| Breakout force, bucket / lift arm | 6,191 / 4,723 lbf | 2,808 / 2,142 kg |
Engine
| Spec | US | Metric |
|---|---|---|
| Engine | Kubota V3307-TE5A | Kubota V3307-TE5A |
| Gross output (SAE J1995) at 2,400 rpm | 71.6 hp | 53.4 kW |
| Net output (SAE J1349) at 2,400 rpm | 70.5 hp | 52.6 kW |
| Displacement | 203.2 in³ | 3,331 cc |
| Cylinders / aspiration | 4 / turbocharged | 4 / turbocharged |
| Bore × stroke | 3.7 × 4.7 in | 94 × 120 mm |
Hydraulics, tracks and capacities
| Spec | US | Metric |
|---|---|---|
| Auxiliary flow, standard / high flow | 19.2 / 29.8 gpm | 72.7 / 112.8 L/min |
| Auxiliary pressure | 3,185 psi | 224.0 kgf/cm² |
| Travel speed, low / high | 5.6 / 8.6 mph | 9.0 / 13.7 km/h |
| Traction force | 9,678 lbf | 4,390 kgf |
| Track width, standard / wide | 12.6 / 15.8 in | 320 / 400 mm |
| Ground pressure, standard track, open / closed cab | 5.8 / 5.9 psi | 5.8 / 5.9 psi |
| Ground pressure, wide track, open / closed cab | 4.7 / 4.8 psi | 4.7 / 4.8 psi |
| Track rollers per side / ground contact length | 4 / 56.5 in | 4 / 1,436 mm |
| Fuel tank | 25.0 gal | 94.6 L |
| Hydraulic system / tank | 12.2 / 4.3 gal | 46 / 16.1 L |
Dimensions
| Spec | US | Metric |
|---|---|---|
| Bucket hinge pin height at max. lift | 122.7 in | 3,117 mm |
| Reach at max. lift and dump | 39.6 in | 1,007 mm |
| Height to top of cab | 81.8 in | 2,078 mm |
| Length without / with bucket | 112 / 142.1 in | 2,844 / 3,609 mm |
| Width, standard / wide track | 65.9 / 69.1 in | 1,675 / 1,755 mm |
| Width with bucket | 68 in | 1,727 mm |
| Ground clearance | 11.7 in | 296 mm |
| Turning radius from center, machine rear | 57.8 in | 1,468 mm |
| Departure / max dump / rollback angle | 31.1° / 38.5° / 27° | 31.1° / 38.5° / 27° |

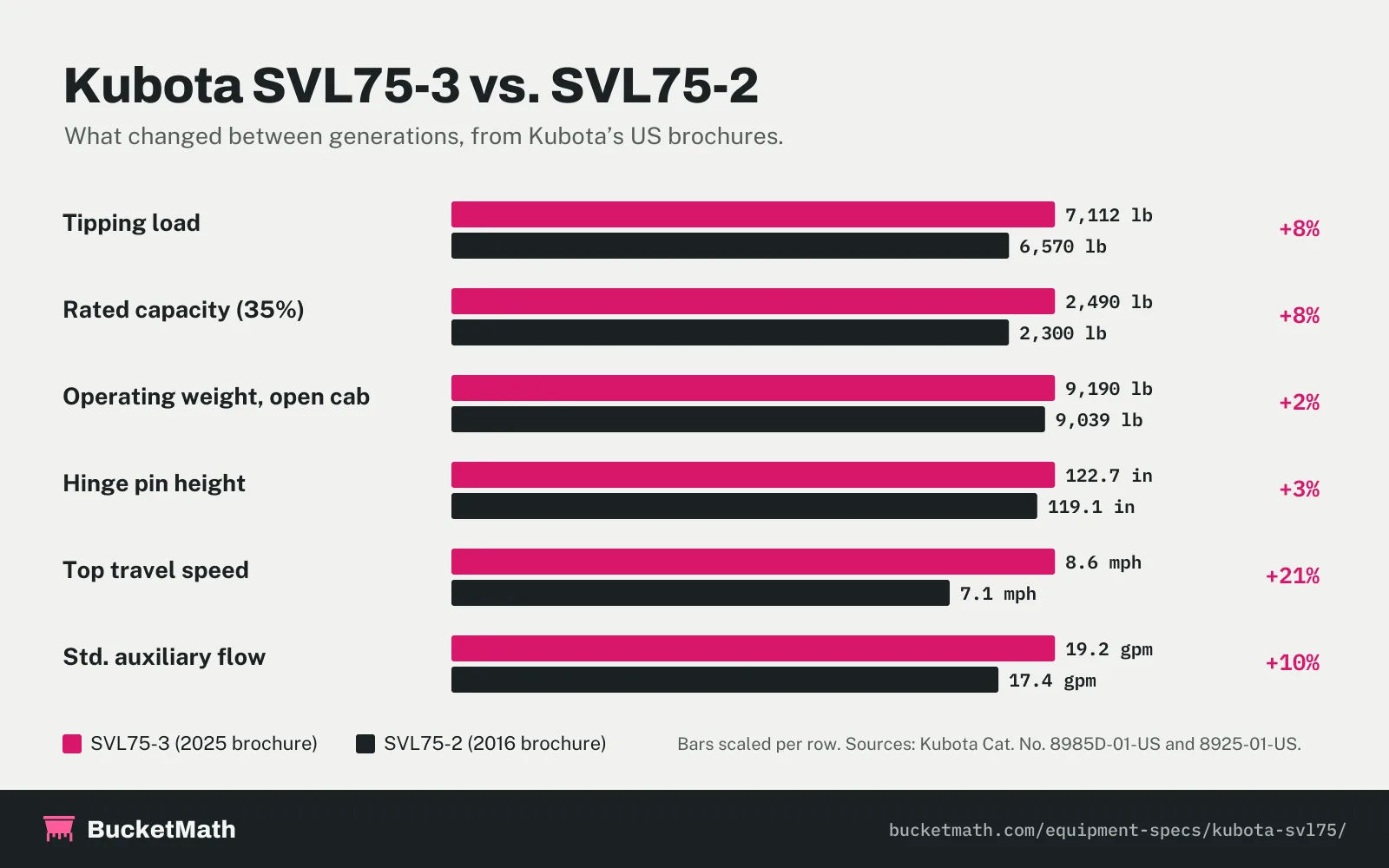

SVL75-3 vs. SVL75-2: what changed
Most listings you will find are for the SVL75-2. Compared with it, the SVL75-3 carries about 8 percent more, lifts the hinge pin 3.6 in higher and travels 1.5 mph faster in high range, for about 150 lb more weight.
| Spec | SVL75-3 | SVL75-2 |
|---|---|---|
| Kubota brochure | 8985D-01-US (2025) | 8925-01-US (2016) |
| Engine | V3307-TE5A | V3307-CR-TE4, Tier 4 |
| Gross / net power | 71.6 / 70.5 hp | 74.3 / 68.8 hp |
| Operating weight, open / closed cab | 9,190 / 9,420 lb | 9,039 / 9,315 lb |
| Rated capacity (35%) | 2,490 lb | 2,300 lb |
| Tipping load | 7,112 lb | 6,570 lb |
| Hinge pin height | 122.7 in | 119.1 in |
| Travel speed, low / high | 5.6 / 8.6 mph | 4.7 / 7.1 mph |
| Auxiliary flow, standard / high | 19.2 / 29.8 gpm | 17.4 / 29.3 gpm |
| Bucket breakout force | 6,191 lbf | 6,204 lbf |
| Wide track option | 15.8 in (400 mm) | 15.0 in (380 mm) |
| Fuel tank | 25.0 gal | 24.6 gal |
Looking for 2012 or 2013 SVL75 specs? Kubota’s current documents cover the SVL75-3 and SVL75-2, and we could not find Kubota’s spec sheet for earlier SVL75 machines, so we don’t list numbers for them. Give a Kubota dealer the serial number to confirm the exact specifications of an older machine.
How much weight can a Kubota SVL75 lift?
The SVL75-3 is rated at 2,490 lb at 35 percent of its 7,112 lb tipping load (7,112 × 0.35 = 2,489). The SVL75-2 is rated at 2,300 lb at 35 percent of 6,570 lb. The 35 percent figure is the one ISO 14397-1 sets for tracked loaders, so use it when comparing with other track loaders. Kubota also lists 3,557 lb at 50 percent for the SVL75-3, the basis wheeled skid steers use.
Standard vs. optional equipment (SVL75-3)
- Standard: open cab, LCD touch panel with jog dial, rear-view camera, keyless start, LED work lights front and rear, KubotaNOW telematics, mechanical quick coupler, bucket self-leveling (up only), two-speed travel with auto-shift, track response settings, 320 mm rubber tracks and a pre-cleaner.
- Optional: closed cab with air conditioning, heated air suspension seat, Kubota Shockless Ride, high-flow hydraulics, hydraulic quick coupler, 400 mm tracks, reversing fan, polycarbonate door, additional counterweight, engine block heater and lights.
Kubota marks several of these as factory options, and some come standard on certain cab models. Confirm the build with your dealer.
Kubota SVL75-3 vs. Cat 259D3
The Cat 259D3 is a close size match. On published figures the SVL75-3 carries more at 35 percent and weighs about 200 lb more, with a slightly higher hinge pin.
| Spec | Kubota SVL75-3 | Cat 259D3 |
|---|---|---|
| Operating weight | 9,190 lb (open cab) | 8,987 lb |
| Rated capacity (35%) | 2,490 lb | 2,010 lb |
| Tipping load | 7,112 lb | 5,745 lb |
| Hinge pin height | 122.7 in | 121 in |
| Gross power | 71.6 hp | 74.3 hp |
| High flow | 29.8 gpm | 30 gpm |
Frequently asked questions
How much weight can a Kubota SVL75-2 lift?
Kubota rates the SVL75-2 at 2,300 lb, 35 percent of its 6,570 lb tipping load. The newer SVL75-3 is rated at 2,490 lb at 35 percent, or 3,557 lb at 50 percent.
How much does a Kubota SVL75 weigh?
The SVL75-3 weighs 9,190 lb with an open cab and 9,420 lb with a closed cab. The SVL75-2 weighs 9,039 lb and 9,315 lb. Kubota’s figures include a 165 lb operator.
What is the difference between the SVL75-3 and the SVL75-2?
The SVL75-3 has a higher tipping load (7,112 vs 6,570 lb), a higher rated capacity (2,490 vs 2,300 lb), a taller hinge pin (122.7 vs 119.1 in), faster high-range travel (8.6 vs 7.1 mph), more standard auxiliary flow (19.2 vs 17.4 gpm), a sealed one-piece cab and a 7 in touch panel.
How much horsepower does a Kubota SVL75 have?
Kubota’s 2025 SVL75-3 brochure lists 71.6 hp gross and 70.5 hp net; its 2023 launch release gave 74.3 hp. The SVL75-2 is listed at 74.3 hp gross and 68.8 hp net.
Does the Kubota SVL75 have high flow?
Yes, as a factory option. High flow gives 29.8 gpm on the SVL75-3 and 29.3 gpm on the SVL75-2, against 19.2 and 17.4 gpm standard.
Is there a Kubota SVL75 spec sheet PDF?
Kubota USA publishes the SVL75-3 brochure as a PDF with a full specifications and dimensions table, linked in the sources below.
How much does a new Kubota SVL75-3 cost?
Kubota does not print a price in its brochure. Prices depend on the cab, high flow and other options, so ask several Kubota dealers for quotes.
Sources
- Kubota, SVL75-3 Compact Track Loader brochure, Cat. No. 8985D-01-US, printed 2025.
- Kubota, SVL75-2 / SVL95-2s Compact Track Loader brochure, Cat. No. 8925-01-US, printed 2016.
- Kubota, Kubota introduces new SVL75-3 compact track loader, March 14, 2023.
- Cat 259D3 figures from our 259D3 page, which cites cat.com; ISO 14397-1.

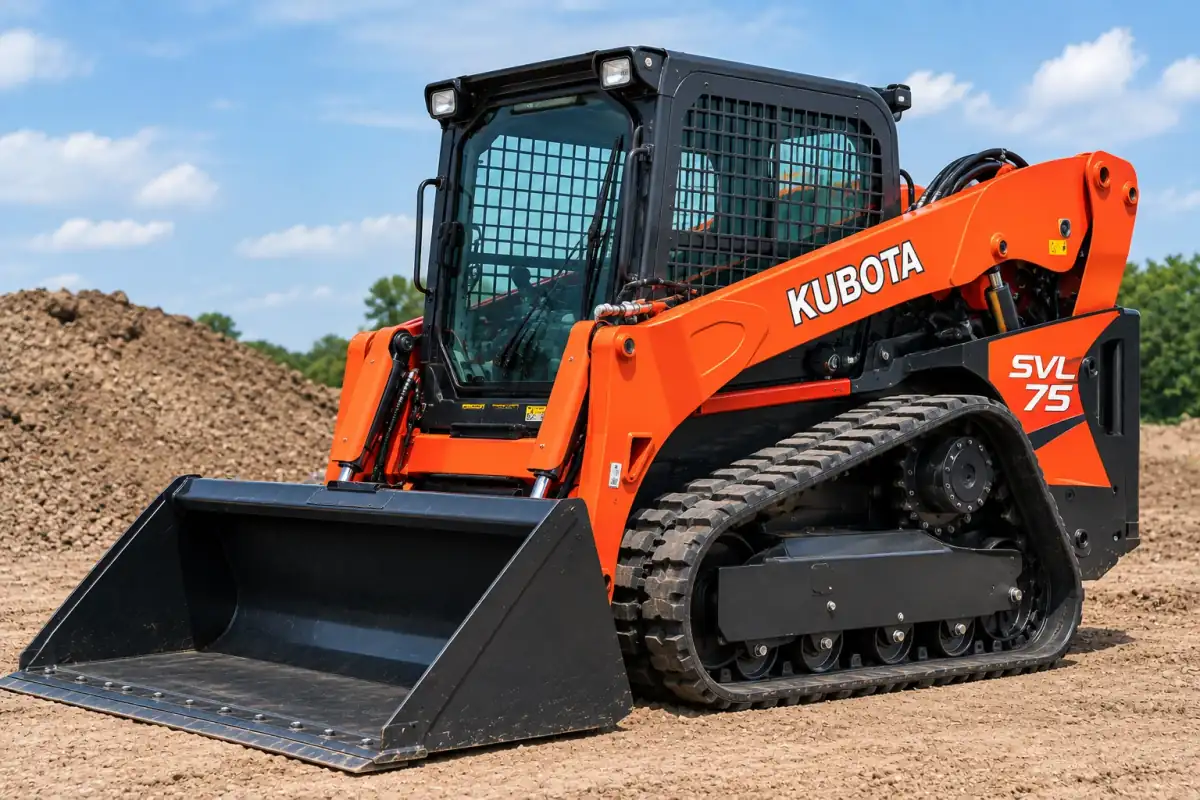

Kubota is a trademark of its owner. BucketMath is independent and not affiliated with Kubota or Caterpillar. The machine image on this page is AI-generated. Confirm specifications with a dealer before you buy, haul or lift; see our disclaimer.
