The Bobcat E35 is a 4-ton class compact excavator with zero tail swing. The standard machine weighs 7,659 lb, digs 121.2 in (10 ft 1.2 in) deep and has a 24.8 hp engine. Bobcat also offers it with a long arm or an extendable arm, which dig deeper and add weight.
Bobcat · Compact excavator
E35
| Operating weight7,659 lb | Max dig depth121.2 in | Engine24.8 hp | Tail swing0 in |
Source: Bobcat, E35 specifications. Figures are for the standard arm.
Bobcat E35 at a glance
Zero tail swing in the standard build
Bobcat lists 0 in of tail swing overhang for the standard E35, so the back of the machine stays inside the track width as the upper structure turns. That helps next to a wall, a fence or traffic. The long-arm and extendable-arm versions are listed with 3.2 in of overhang.
Three arm options
Standard arm, long arm or extendable arm, with maximum dig depths of 121.2 in, 133 in and 153.2 in. The longer arms add 703 lb and 931 lb of operating weight.
24.8 hp and 7,284 lbf of bucket force
Bobcat lists a 24.8 hp engine, 7,284 lbf of bucket digging force on all three arms, and up to 4,690 lbf of arm digging force with the standard arm.
Auxiliary hydraulics standard
Auxiliary hydraulics come standard, rated at 16.9 gpm and 2,987 psi for hydraulic attachments.
Bobcat E35 specifications
US figures are exactly as Bobcat publishes them. Metric values are our conversions. Where a figure changes with the arm, the table shows all three versions.
Weight and digging force
| Spec | Standard | Long arm | Extendable arm |
|---|---|---|---|
| Operating weight | 7,659 lb 3,474 kg | 8,362 lb 3,793 kg | 8,590 lb 3,896 kg |
| Arm digging force | 4,690 lbf 20.9 kN | 4,074 lbf 18.1 kN | 4,592 lbf 20.4 kN |
| Bucket digging force | 7,284 lbf 32.4 kN | 7,284 lbf 32.4 kN | 7,284 lbf 32.4 kN |
| Weight class | 4 t | 4 t | 4 t |

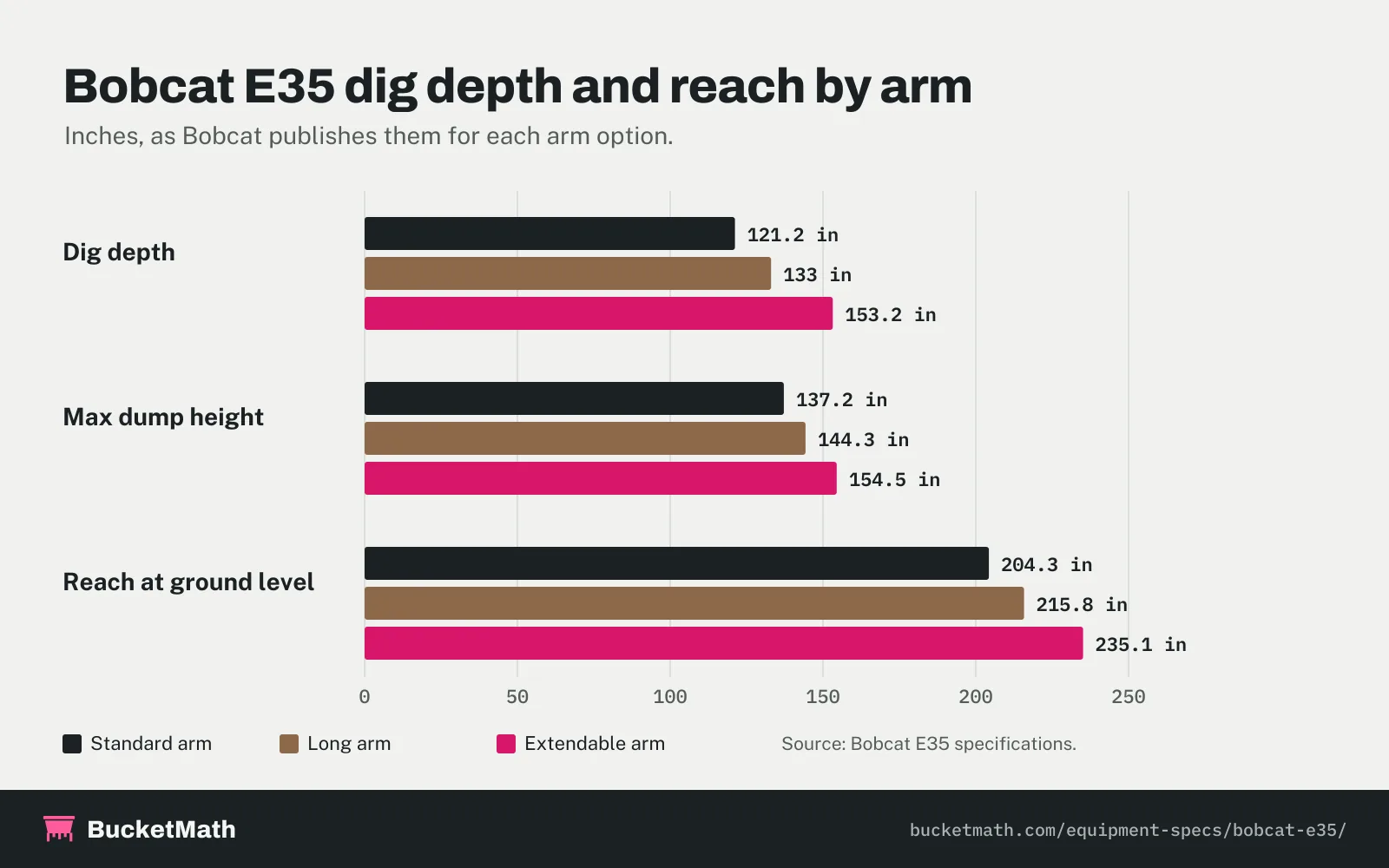

Digging dimensions
| Spec | Standard | Long arm | Extendable arm |
|---|---|---|---|
| Max dig depth | 121.2 in 3,078 mm | 133 in 3,378 mm | 153.2 in 3,891 mm |
| Max dump height | 137.2 in 3,485 mm | 144.3 in 3,665 mm | 154.5 in 3,924 mm |
| Reach at ground level | 204.3 in 5,189 mm | 215.8 in 5,481 mm | 235.1 in 5,972 mm |
| Transport length | 190 in 4,826 mm | 190.1 in 4,829 mm | 190.4 in 4,836 mm |
| Tail swing overhang | 0 in 0 mm | 3.2 in 81 mm | 3.2 in 81 mm |
Size, travel and swing
| Spec | US | Metric |
|---|---|---|
| Width | 69.7 in | 1,770 mm |
| Cab height | 96.2 in | 2,443 mm |
| Travel speed, low | 1.6 mph | 2.6 km/h |
| Travel speed, maximum | 2.9 mph | 4.7 km/h |
| Lift radius | 118 in | 2,997 mm |
| Boom swing, left | 75° | 75° |
| Boom swing, right | 55° | 55° |
Engine, hydraulics and fuel
| Spec | US | Metric |
|---|---|---|
| Engine power | 24.8 hp | 18.5 kW |
| Auxiliary hydraulic flow | 16.9 gpm | 64.0 L/min |
| Auxiliary pressure | 2,987 psi | 206 bar |
| Fuel tank | 13.7 gal | 51.9 L |
How deep can a Bobcat E35 dig?
With the standard arm, the E35 digs 121.2 in, which is 10 ft 1.2 in. The long arm adds 11.8 in, and the extendable arm adds 32 in over the standard arm.
- Standard arm: 10 ft 1.2 in deep, 17 ft 0.3 in reach at ground level.
- Long arm: 11 ft 1 in deep, 17 ft 11.8 in reach.
- Extendable arm: 12 ft 9.2 in deep, 19 ft 7.1 in reach.
Max dig depth is the lowest point the bucket can reach. A trench with a flat bottom and straight walls usually comes out a little shallower, so leave some margin when you choose a machine. To estimate how much soil a dig will produce, use our Dirt Calculator.
Standard, long arm or extendable arm?
The three versions share the same engine, width and bucket force. They differ in depth, reach, weight, arm force and tail swing.
- Standard arm: the lightest at 7,659 lb, the highest arm digging force at 4,690 lbf, and the only version listed with 0 in of tail swing overhang.
- Long arm: 11.8 in more dig depth for 703 lb more weight. Arm digging force drops to 4,074 lbf, the lowest of the three.
- Extendable arm: 32 in more dig depth and 30.8 in more reach for 931 lb more weight, with 4,592 lbf of arm force. It can be run retracted for close work or extended for depth and reach.
If most of your work is close to a house, a fence line or a road, the standard arm keeps full zero tail swing. If you need depth or reach more than tight clearance, compare the long and extendable arms. Any trench 5 ft or deeper needs a protective system under OSHA’s excavation rule, 29 CFR 1926.652, unless it is made entirely in stable rock.
How much does a Bobcat E35 weigh to haul?
Divide the operating weight by 2,000 to get US tons. Add the weight of any buckets or attachments you carry separately, then check the trailer’s rated capacity and your truck’s towing and combined weight ratings.
- Standard arm: 7,659 lb ÷ 2,000 = 3.83 tons.
- Long arm: 8,362 lb ÷ 2,000 = 4.18 tons.
- Extendable arm: 8,590 lb ÷ 2,000 = 4.30 tons.
- Deck space: the transport length is about 190 in (15 ft 10 in) and the width is 69.7 in, before tie-down room.
Bobcat E35 features and price
On September 24, 2026, Bobcat’s E35 page listed a starting price of $58,197 (USD). Treat that as a starting point. A dealer quote changes with the arm, the cab, options, freight and your location.
- Standard: auxiliary hydraulics, rubber tracks and engine shutdown.
- Standard or optional, depending on the build: Bobcat’s quick-tach attachment system.
- Optional: cab enclosure, heater and air conditioning, and a radio.
Bobcat also highlights an in-track swing frame, a dual-flange roller system and low-effort joysticks on the E35. For other machines, see our equipment specs, including the Bobcat T770 and Cat 259D3 track loaders.
Frequently asked questions
How much does a Bobcat E35 weigh?
Bobcat lists 7,659 lb (about 3,474 kg) for the standard E35, 8,362 lb with the long arm and 8,590 lb with the extendable arm.
How deep can a Bobcat E35 dig?
121.2 in (10 ft 1.2 in) with the standard arm, 133 in (11 ft 1 in) with the long arm and 153.2 in (12 ft 9.2 in) with the extendable arm.
How much horsepower does a Bobcat E35 have?
Bobcat lists 24.8 hp (about 18.5 kW) for the E35 engine.
Is the Bobcat E35 zero tail swing?
Yes. Bobcat lists 0 in of tail swing overhang for the standard E35. The long-arm and extendable-arm versions are listed with 3.2 in.
How wide is a Bobcat E35?
The E35 is 69.7 in wide, which is about 5 ft 9.7 in or 1,770 mm.
How much does a Bobcat E35 cost?
Bobcat’s E35 page listed a starting price of $58,197 USD on September 24, 2026. Dealer prices vary with options, freight and location.
What is the fuel tank capacity of a Bobcat E35?
Bobcat lists a 13.7 gal (about 51.9 L) fuel tank.
Sources
- Bobcat, E35 Compact Excavator, specifications, features and starting price, checked September 24, 2026.
- OSHA, 29 CFR 1926.652, Requirements for protective systems.
- Metric conversions by BucketMath: 1 lb = 0.4536 kg; 1 in = 25.4 mm; 1 lbf = 4.448 N; 1 US gal = 3.785 L; 1 psi = 0.06895 bar; 1 hp = 0.7457 kW; 1 mph = 1.609 km/h.

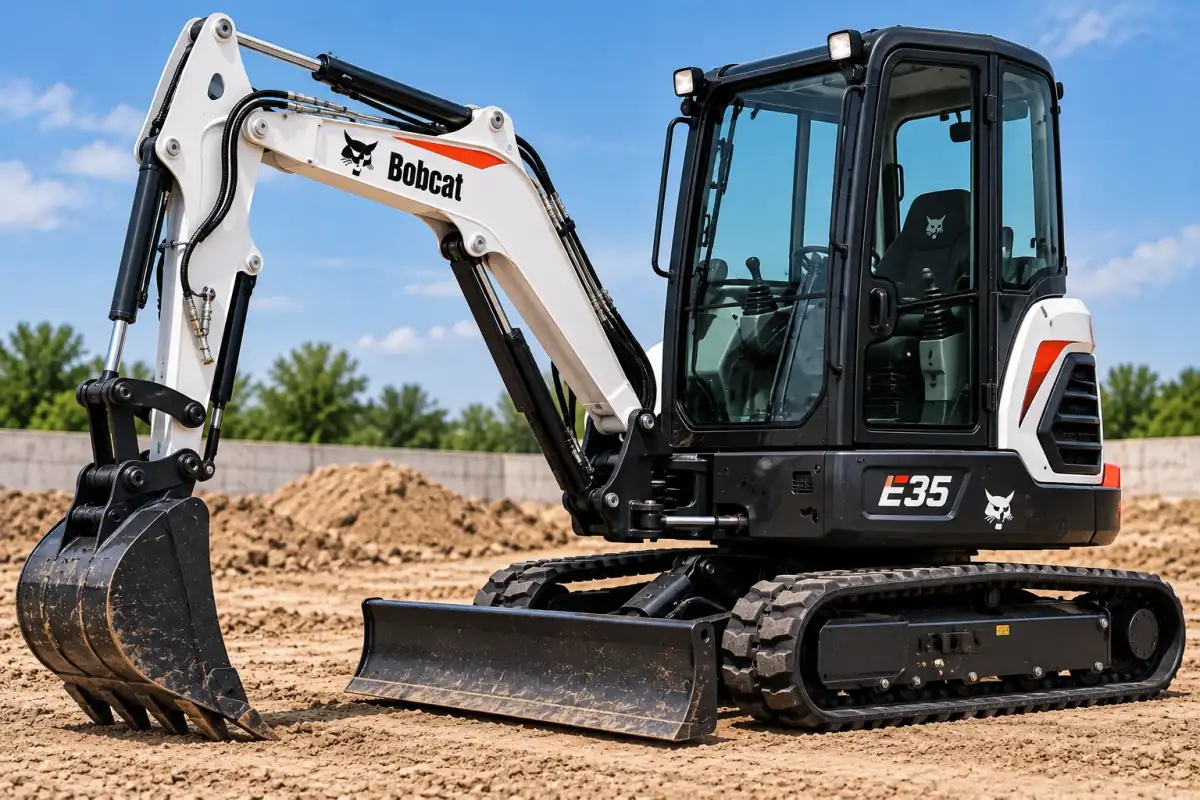

Bobcat is a trademark of its owner. BucketMath is independent and not affiliated with Bobcat. The machine image on this page is AI-generated. Confirm specifications with a dealer before you buy, haul or dig; see our disclaimer.
